EnclosureFor JBL LE-8TUnit BX-70-LE8T

300,000yen （1piece, Only Enclosure Itself）

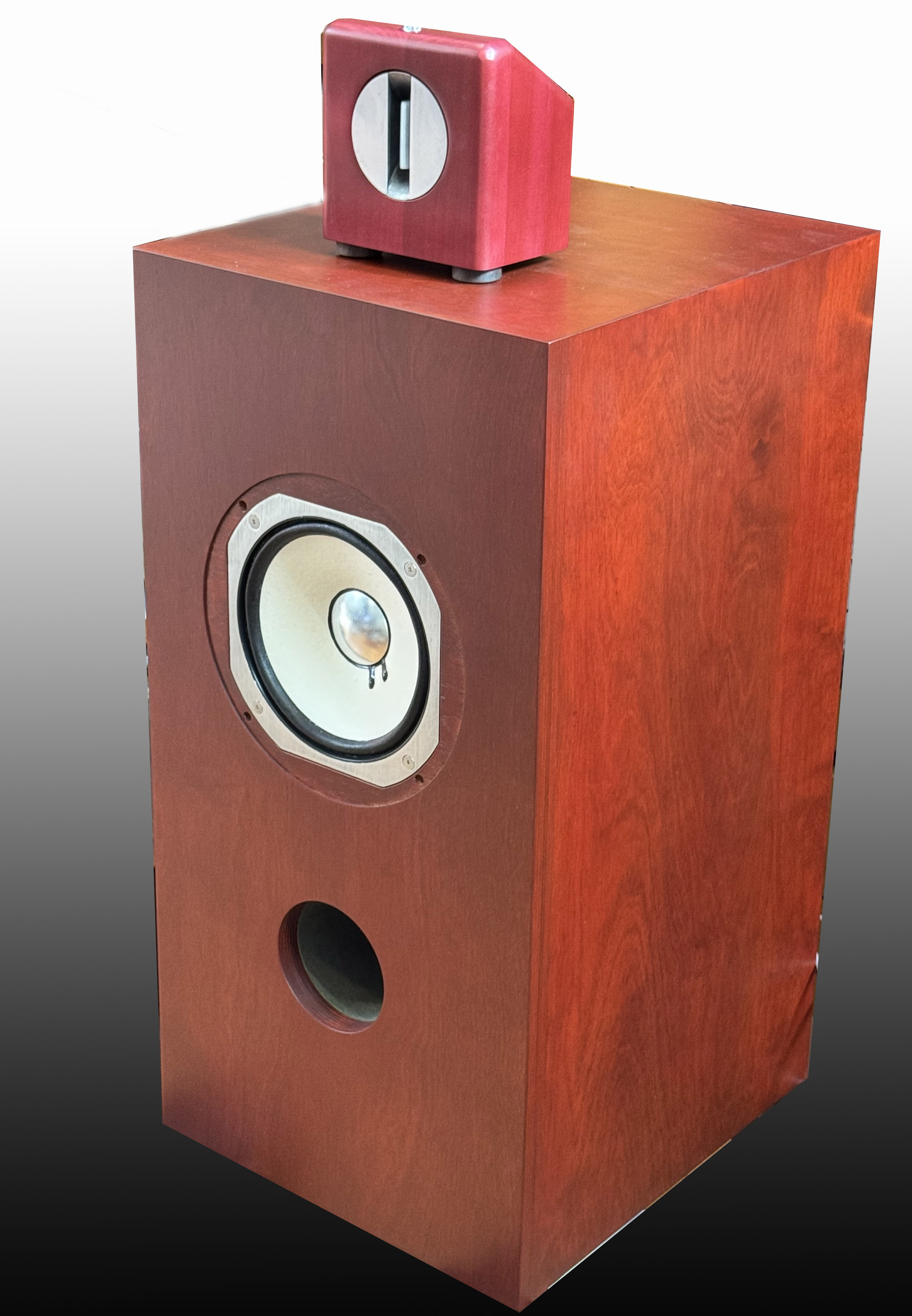

Enclosure+TS-2A+JBL2405

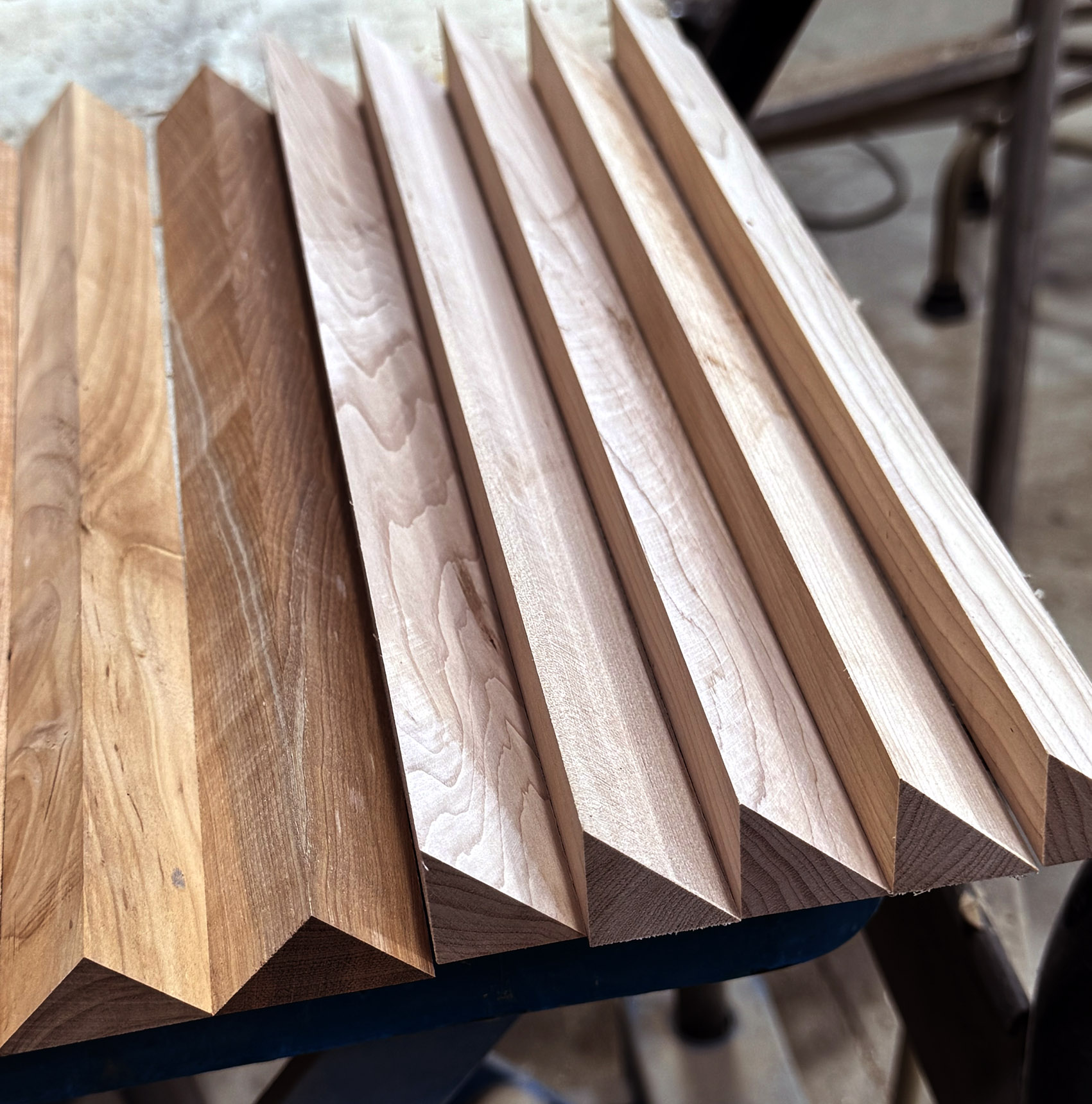

The triangular corner block used for a corner and
ASADA cherry wood material is used.

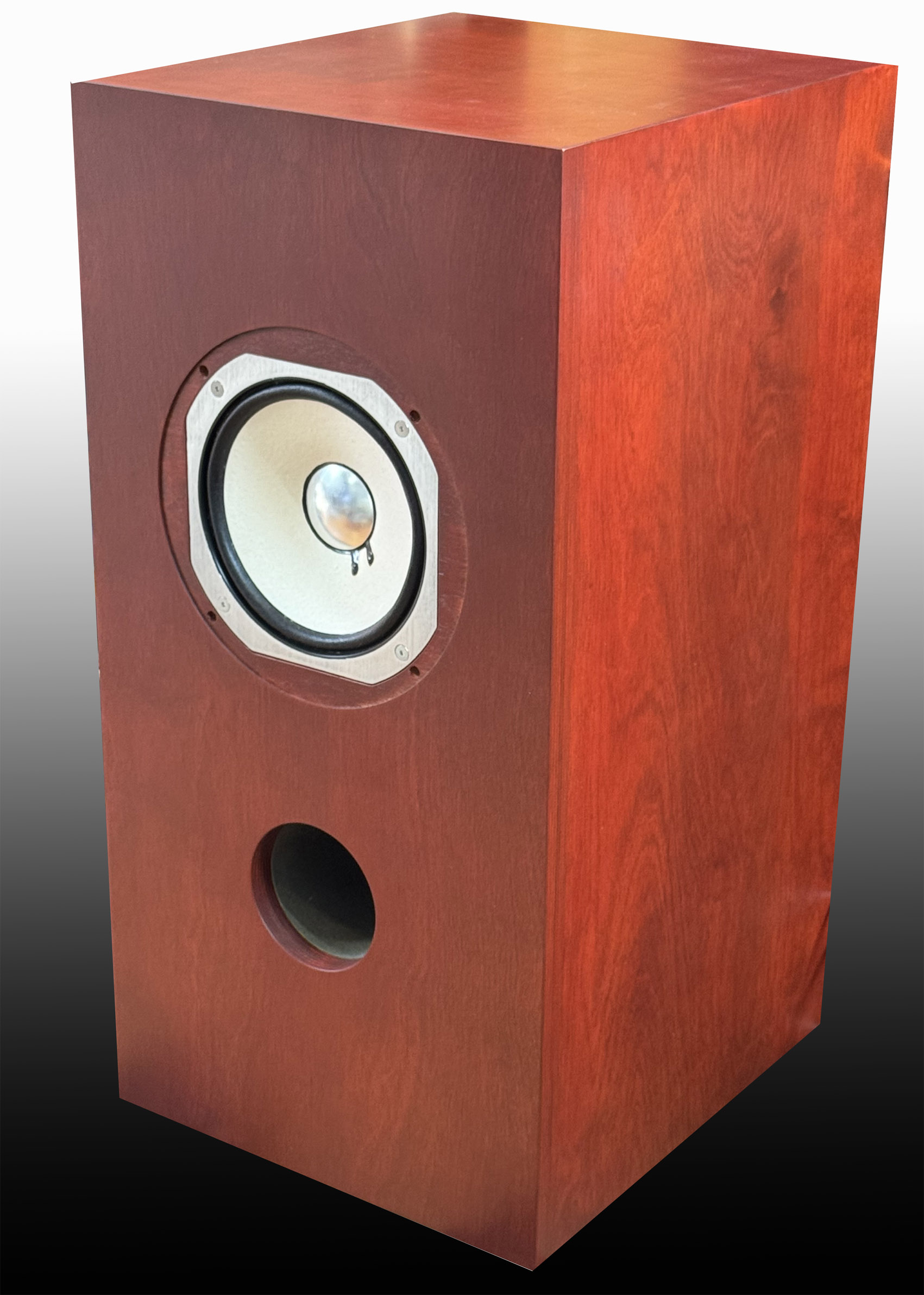

BX-70-LE8T is the enclosure made only for the JBL LE8T unit.
Conventionally, the enclosure of the product made from mountain water electrical machinery in saying the object for LE-8T units was common.
However, since the material was particle board, or the enclosure made from mountain water electrical machinery had quite smaller size, although it was pulling out sufficient performance of LE8T, it did not become precocious.
then, the basis of an idea completely new in order to pull out the performance of LE-8T with all its might at us I designed.
In the data which had come out from JBL those days, admiration enclosure capacity was indicated to be 20 - 120l., and now designed at somewhat larger 70l. in them at us.
The size of a generous box realizes a rich inside low-pitched sound region.
The quality of the material of a box has selected the good hippo plywood material of sound.
This hippo plywood material is a good material of the sound which used the good hippo material from domestic as the thin single plate, and laminated it by made in Japan.
When Tannoy was the height of prosperity once, it is told that plywood homogeneous as this was used.
In Tannoy, the speaker with which that what time also has a spread only by the difference in a box was sold, using the same unit.
So to speak, speaker enclosure could be called so important thing.
At us, enclosure is designed by the same view as a musical instrument, and it is designing by the technique of pulling out beautiful sound to a limit.

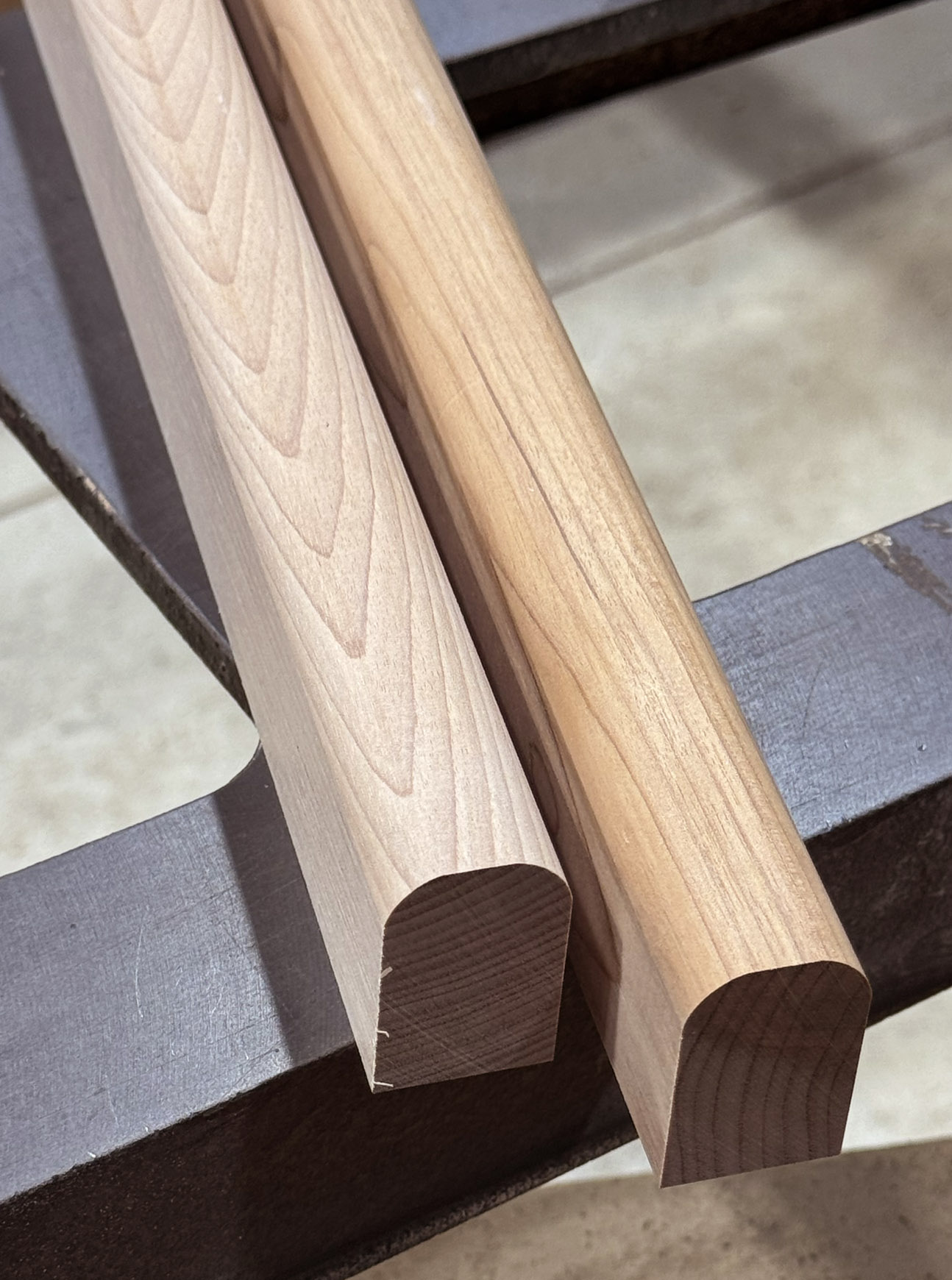

The board thickness of enclosure dared to consider it as half-closed eyes, and was designed control the sound by a reinforcing member.
The thin board of board thickness is used and the sound is controlled by musical instruments, such as a violin, by the reinforcing member called an internal stick.
Also with a speaker, by the thing which thickened board thickness, the sound tends to be lost and it tends to become a petty sound.
but although it will say that it is necessary to make it a strong thick box in order to escape the jarring sound in the particle board which is not good and MDF (plywood which made wood the fiber type and molded it) of sound.
In this machine, a speaker unit puts in so that it may fit into the hollow portion of a buffle side, and it is processed so that it may become flush exactly, when an optional punching network is used.
The saran network with great influence in sound and the lattice-like network are taken as the specification which is not used.
In addition, although the speaker unit makes the Alnico type of JBL8T the standard, ferrite type LE8TH can be used similarly.
an edge portion ages and an old unit also has the necessity for re-covering -- although -- since it is large, please use the unit whose good edge has been re-covered, selecting.
Moreover, when LE8T is used with standard directions for use, will be considerably fallen by upper register in many cases.
in that case, a good sound which balance was able to take when it was used having carried tweeters, such as JBL075 and 2405, upwards -- hearing it -- since it can obtain, I recommend you.
Probably, it is good for a tweeter unit to have a 0.47to1micro F capacitor put into series.
When unclear, please ask to us.　

In addition, the sound when using it in the combination of this product BX-70-LE8T and JBL2405 is Now Showing in Instagram.
Account should input the "Yamamoto sound craft" and please search it with Instagram.

BX-70-LE8T Specifications (an output etc. is a value at the time of incorporating LE-8T)
Form: Bus reflex system speaker enclosure / Application speaker unit : [ JBL LE8T, hippo plywood from quality-of-the-material:domestic of LE8TH / enclosure, ]
ASADA cherry wood material square lumber / efficiency: -- 89dB/1W and 1m / maximum input: -- 50W / outside dimension: -- 350 (W) -- 390 (D) -- 700 (H) / weight: -- 16kg
Price: The main part price classified by 300,000yen (attachment screw is included excluding one-set and speaker unit) tax
